TECHNICAL SPECIFICATIONS

Overall Length:  8.50m

Overall Beam:   3.12m

Internal Beam:   1.76m

Tube Diameter:  55/63cm

No. of Air Chambers: 6

Weight (empty tank, without engine): 1400kg

No. of Passengers: 18

Fuel Capacity: 300L

Max. Engine Power:  350HP

Engine Shaft: XL (extra long)

CE Category: B

STANDARD EQUIPEMENT

* Heavy-duty fiberglass deep-vee hull;

* Heavy-duty stringer system laminated into hull;

* Foam injection in all the free spaces of the hull;

* Composite transom system with reinforcement;

* Fiberglass Non-skid deck；

DECK & COCKPIT

* Self-draining cockpit;

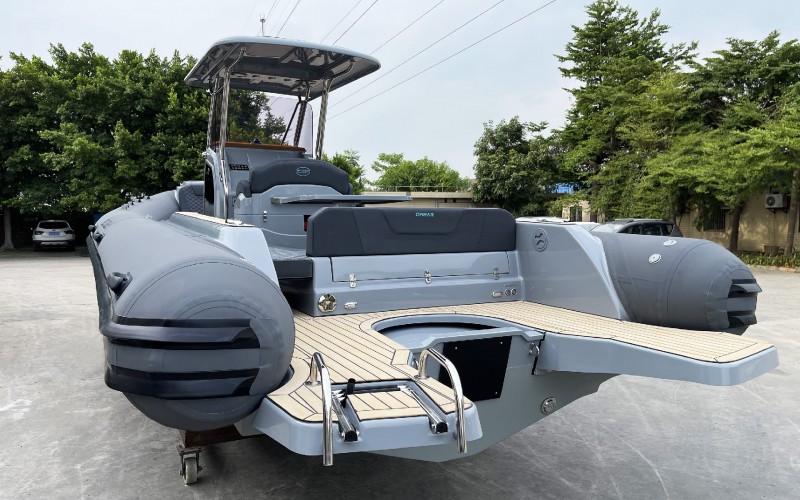

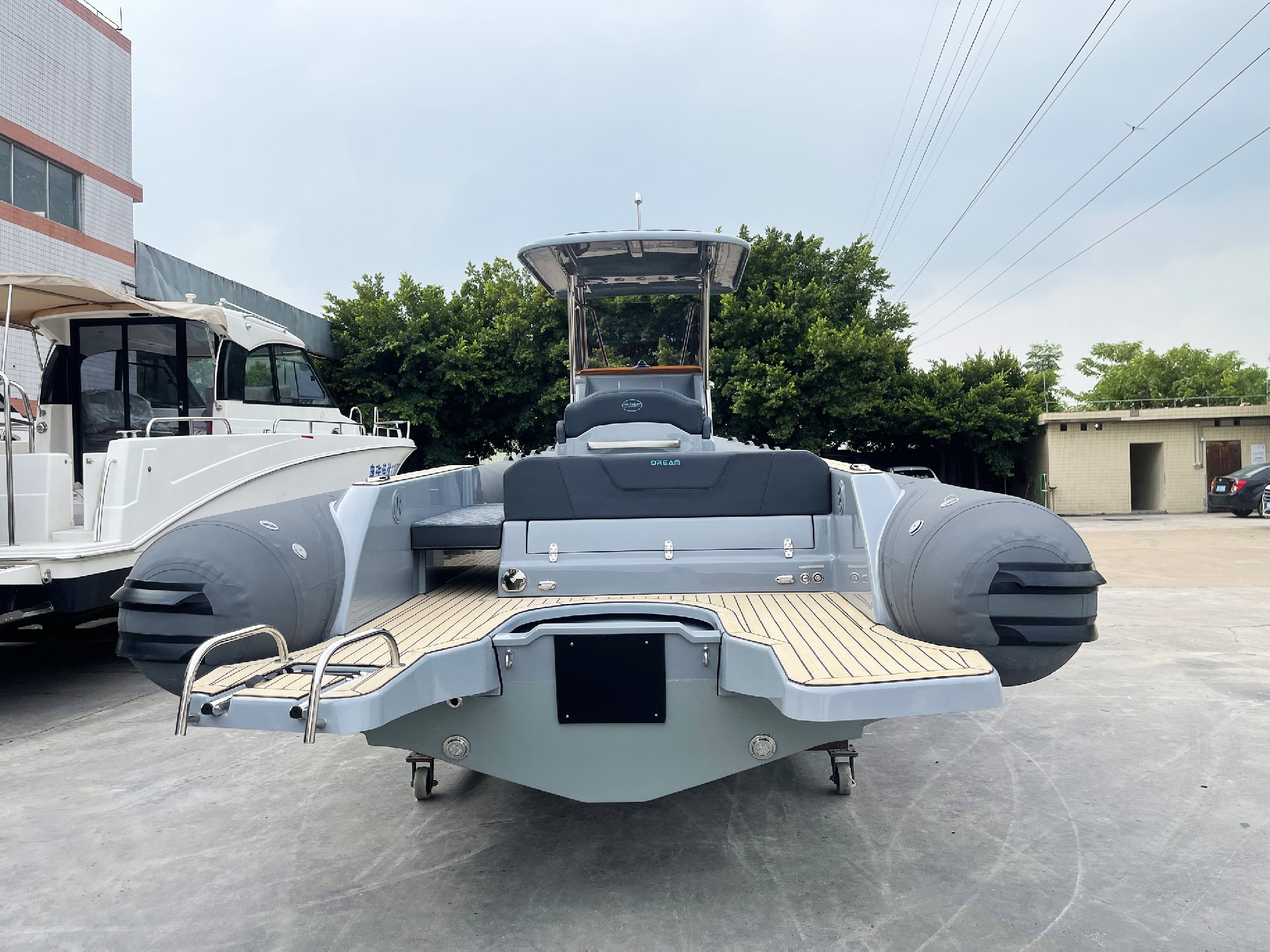

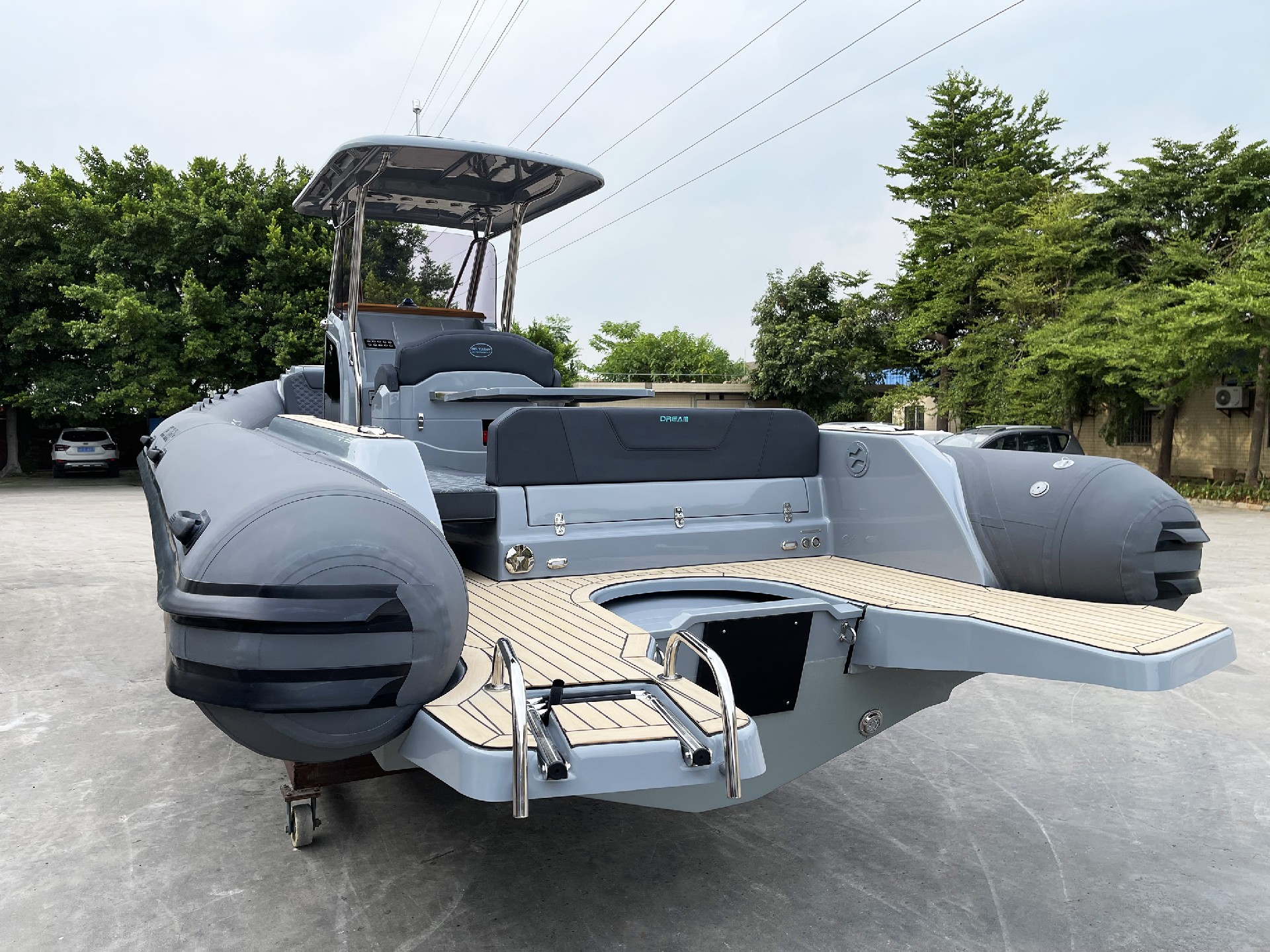

* Fiberglass aft platform;

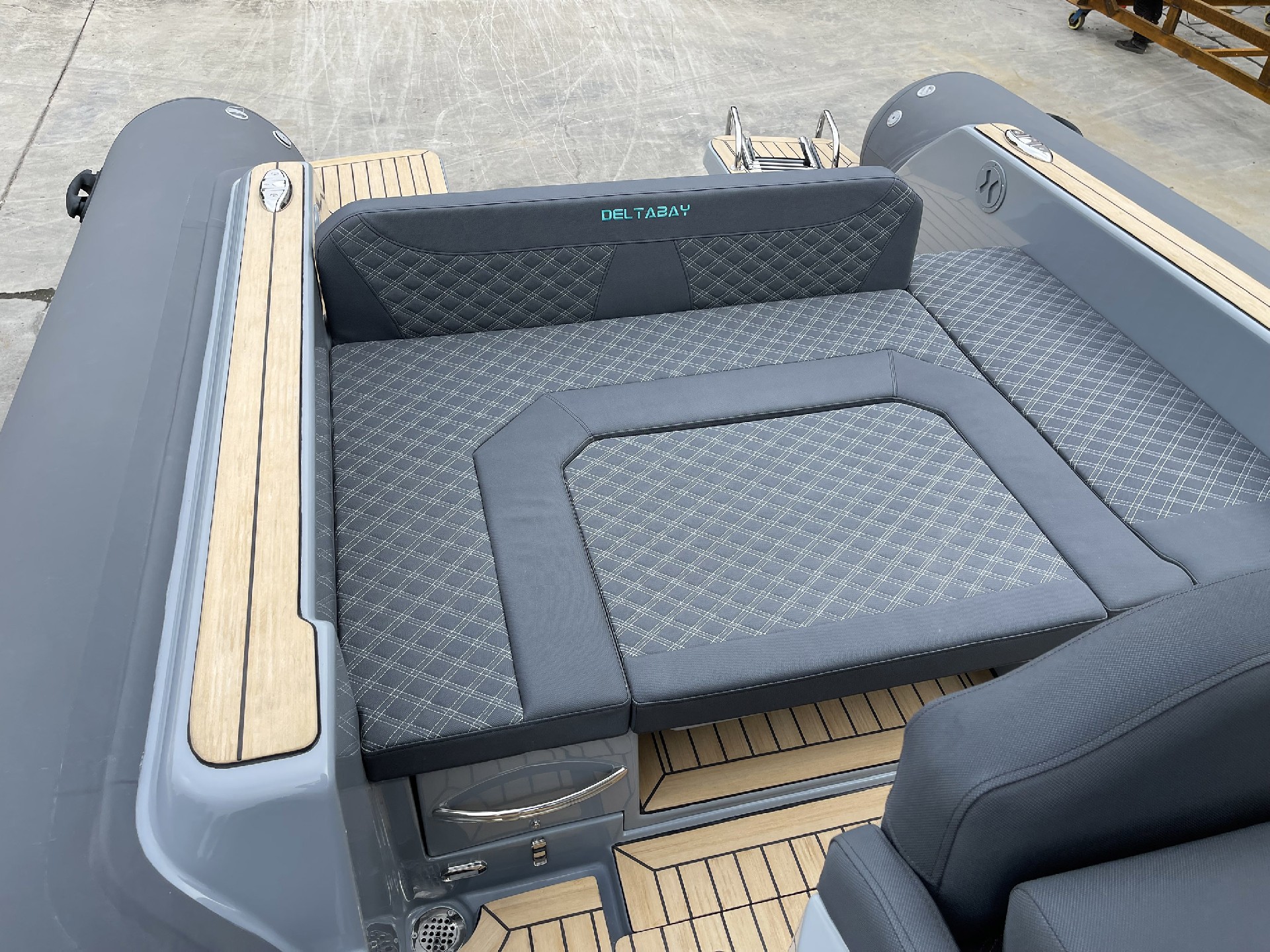

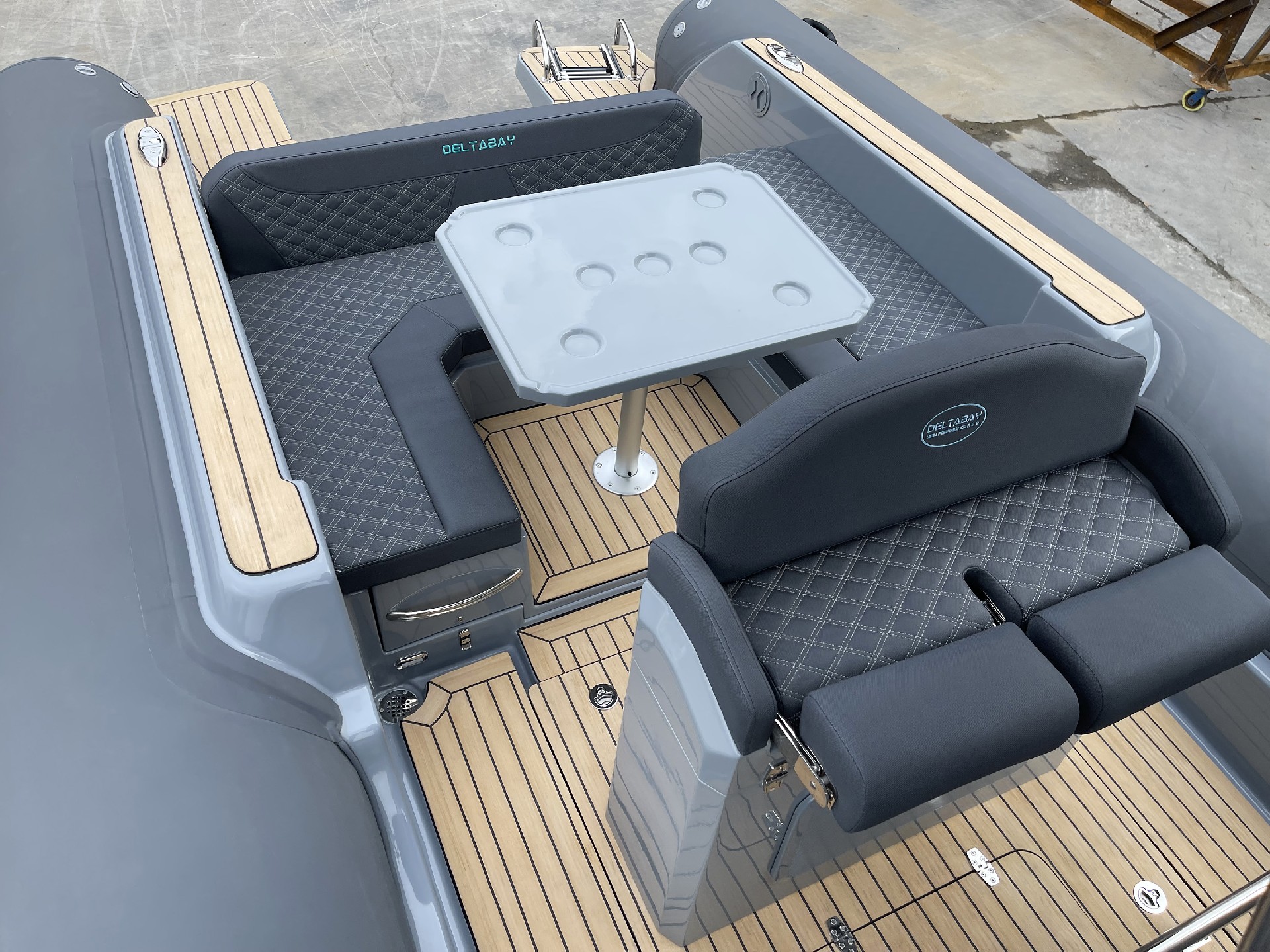

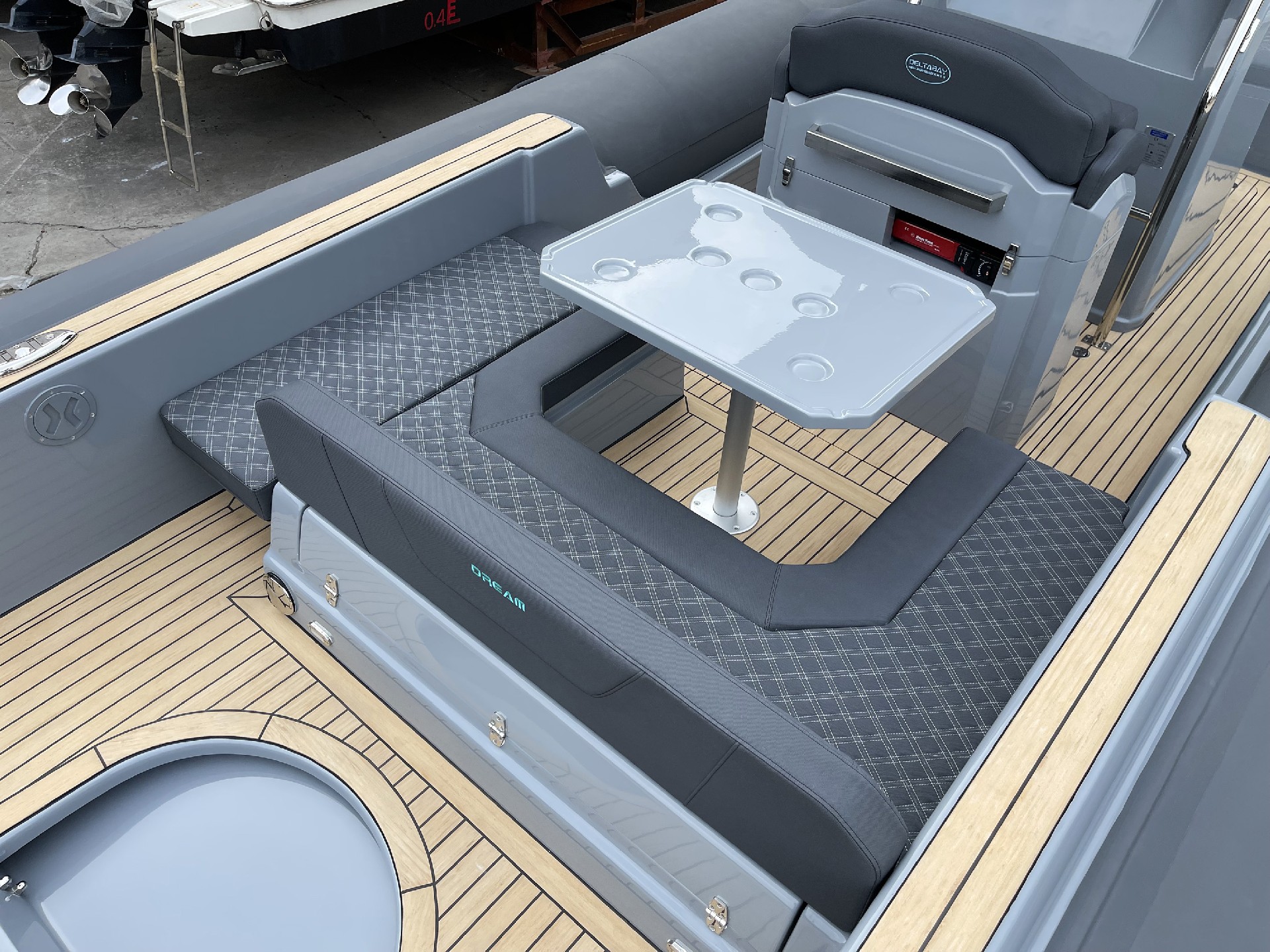

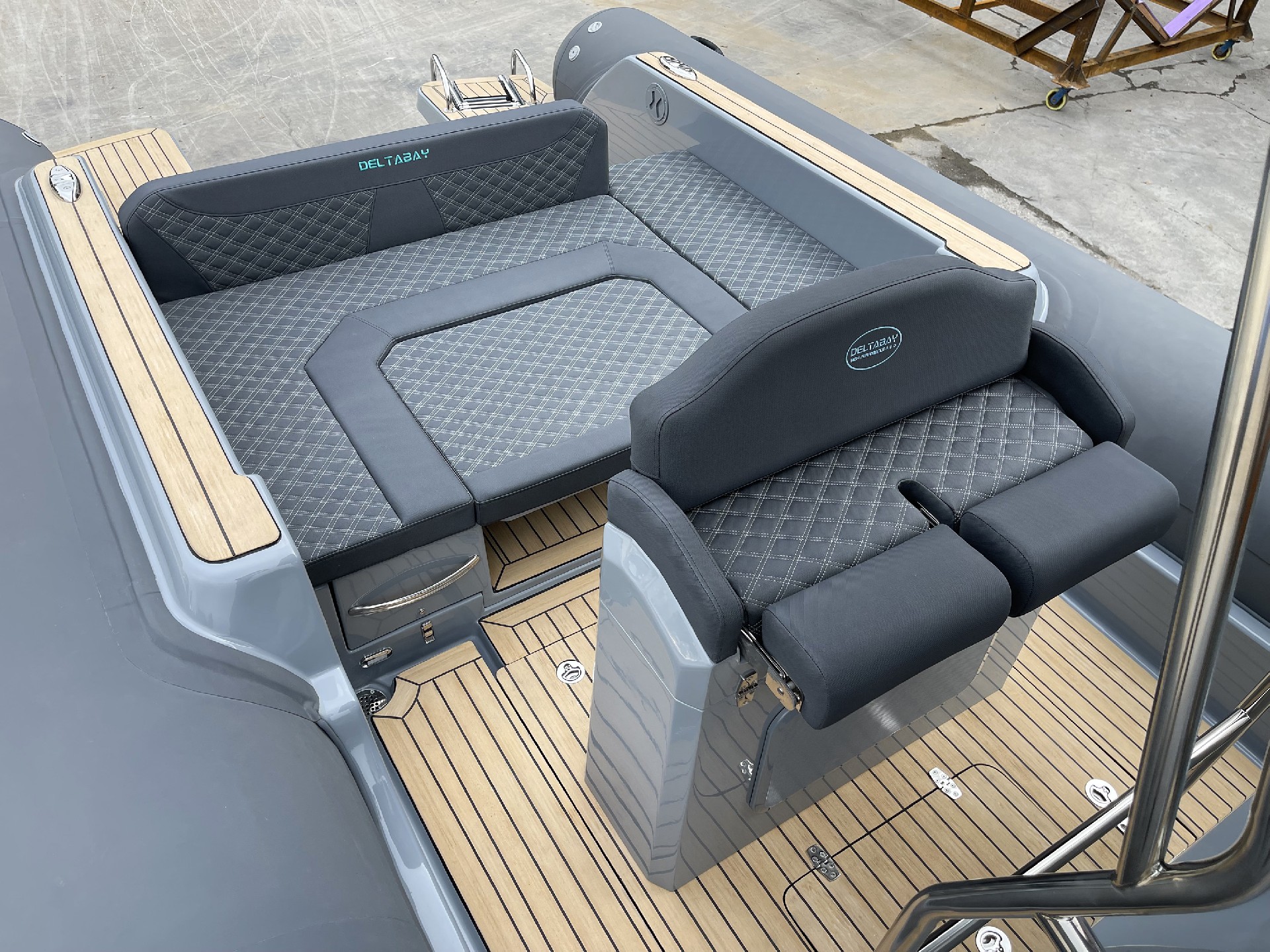

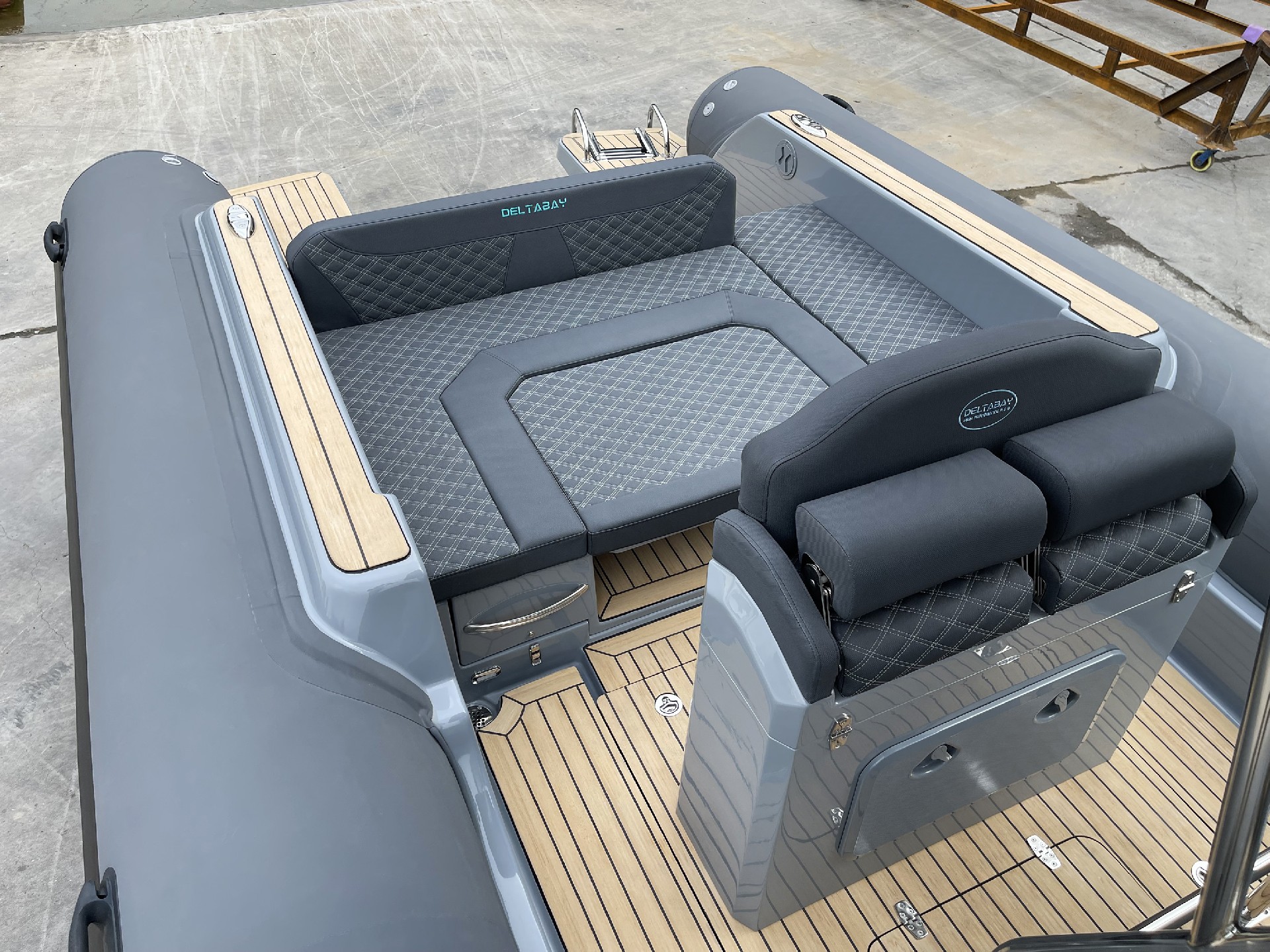

* Rear U-shaped sofa with big storage under;

* Removable picnic table which can convert into a sun-bathing area；

* S.S fuel tank 300L under central deck with fuel sensor & indicator

* Storages under cockpit deck with S.S latches;

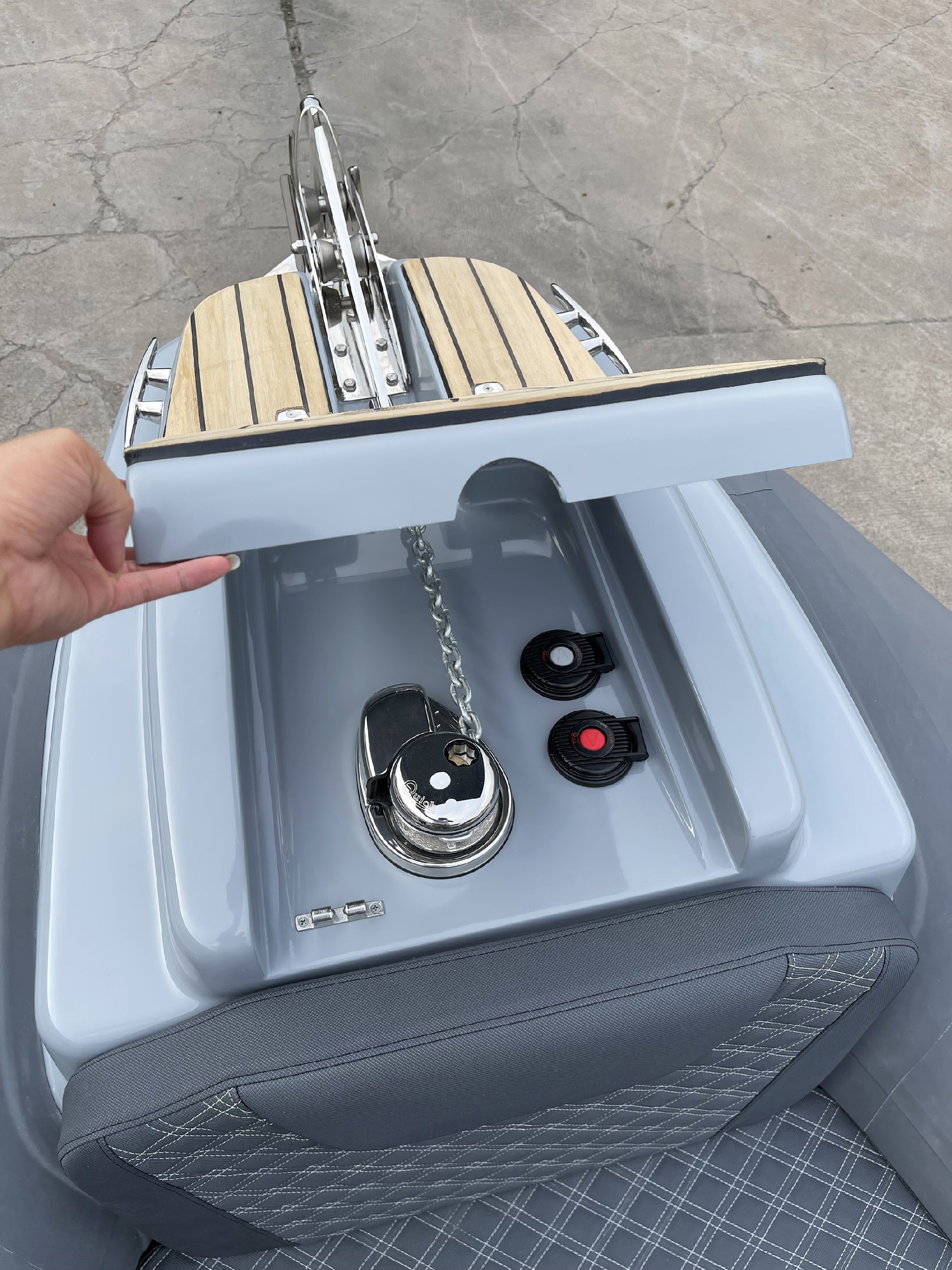

* Larger anchor locker in bow area with self-draining;

* Molded fiberglass anchor platform with S/S anchor roller and cleats;

* Larger under-seat storage area with covers;

* Splash well, draining;

* Engine mounting plate;

* Thru-transom scupper & manifold;

* Stainless steel lifting rings

* 8" S.S. fold-up cleats;

* S.S. lifting ring plates & towing eye;;

CONSOLE

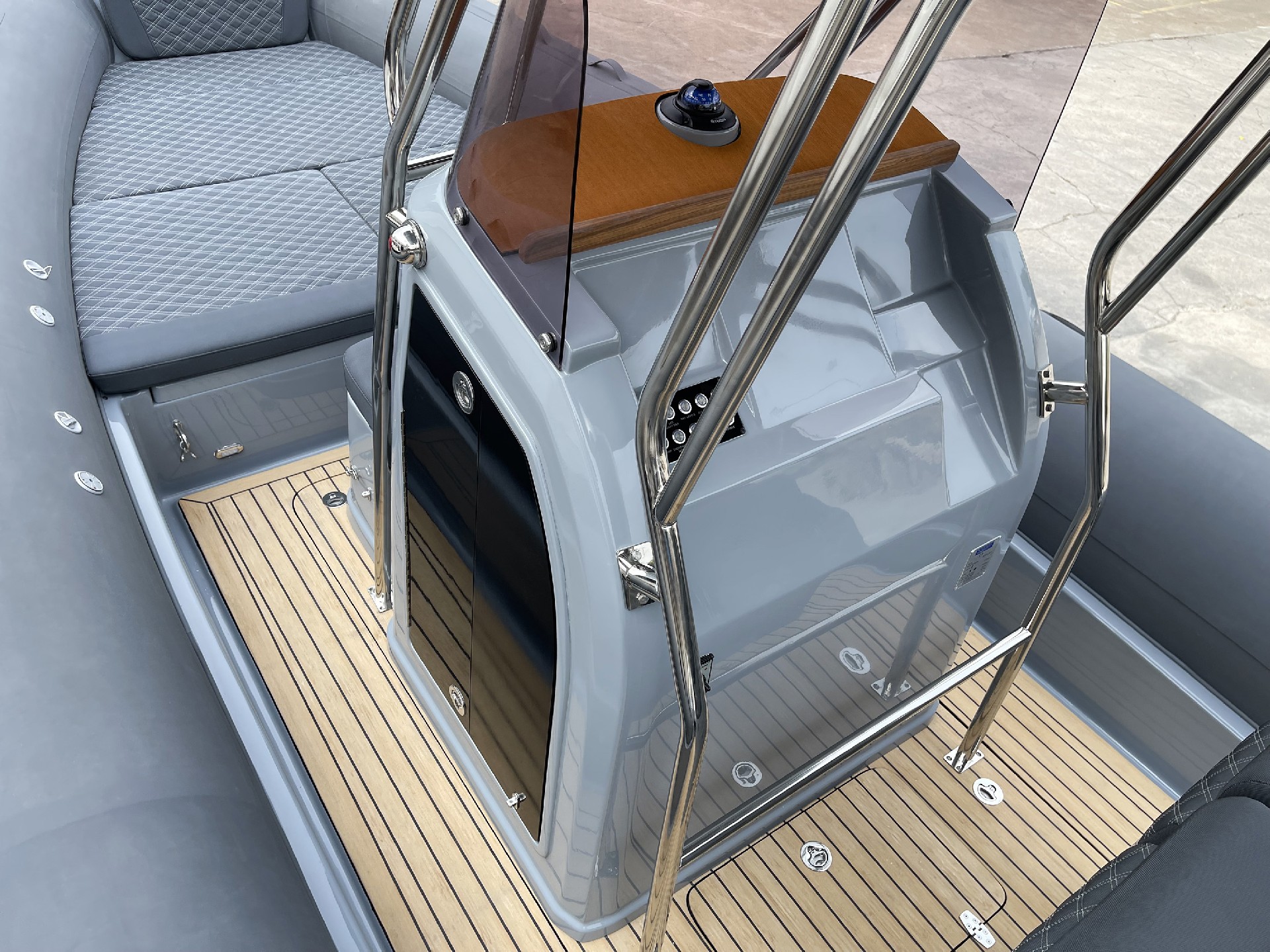

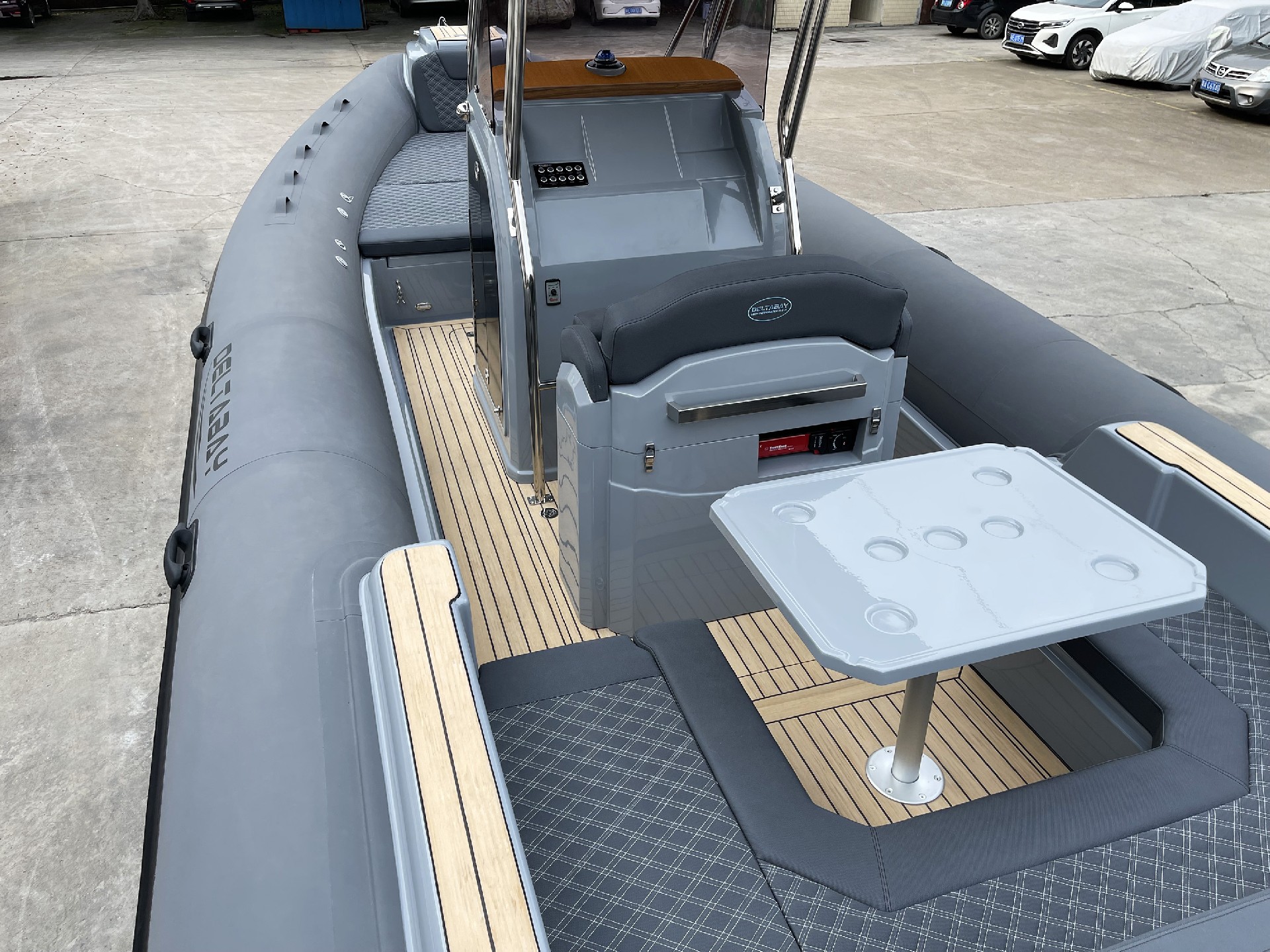

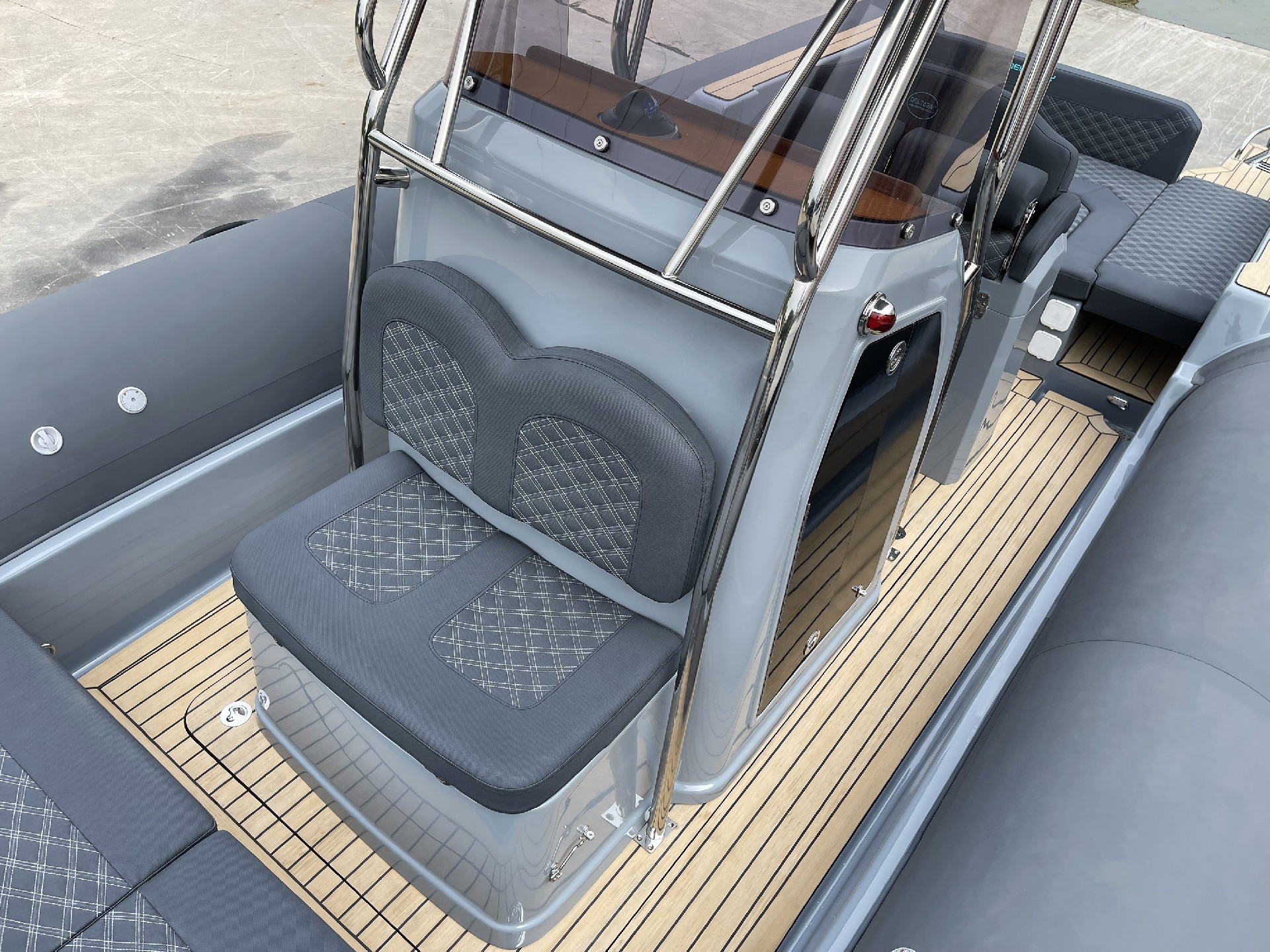

* Molded fiberglass console with Perspex windshield and S.S. handrail;

* Storage compartment in console with opening door;

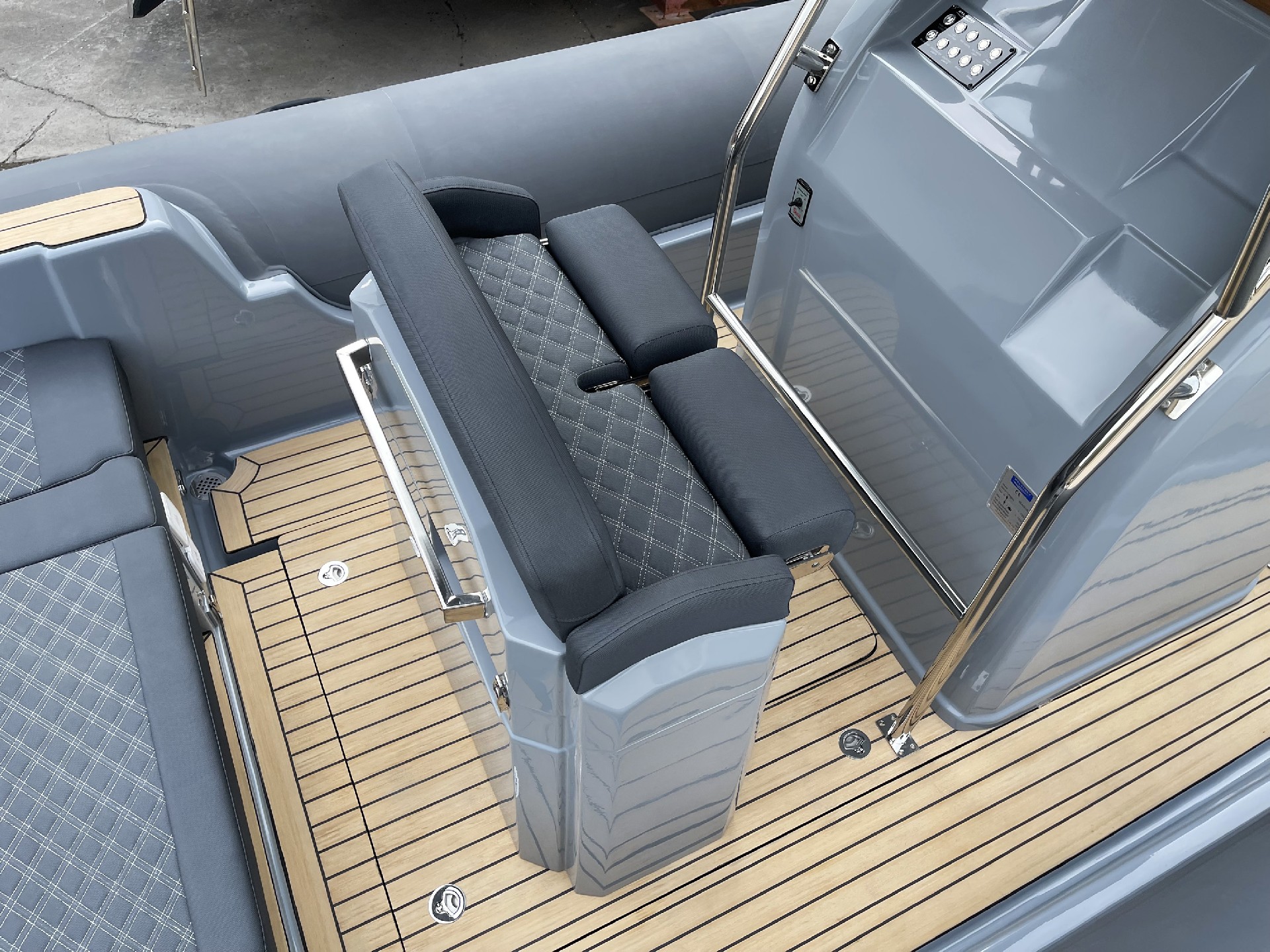

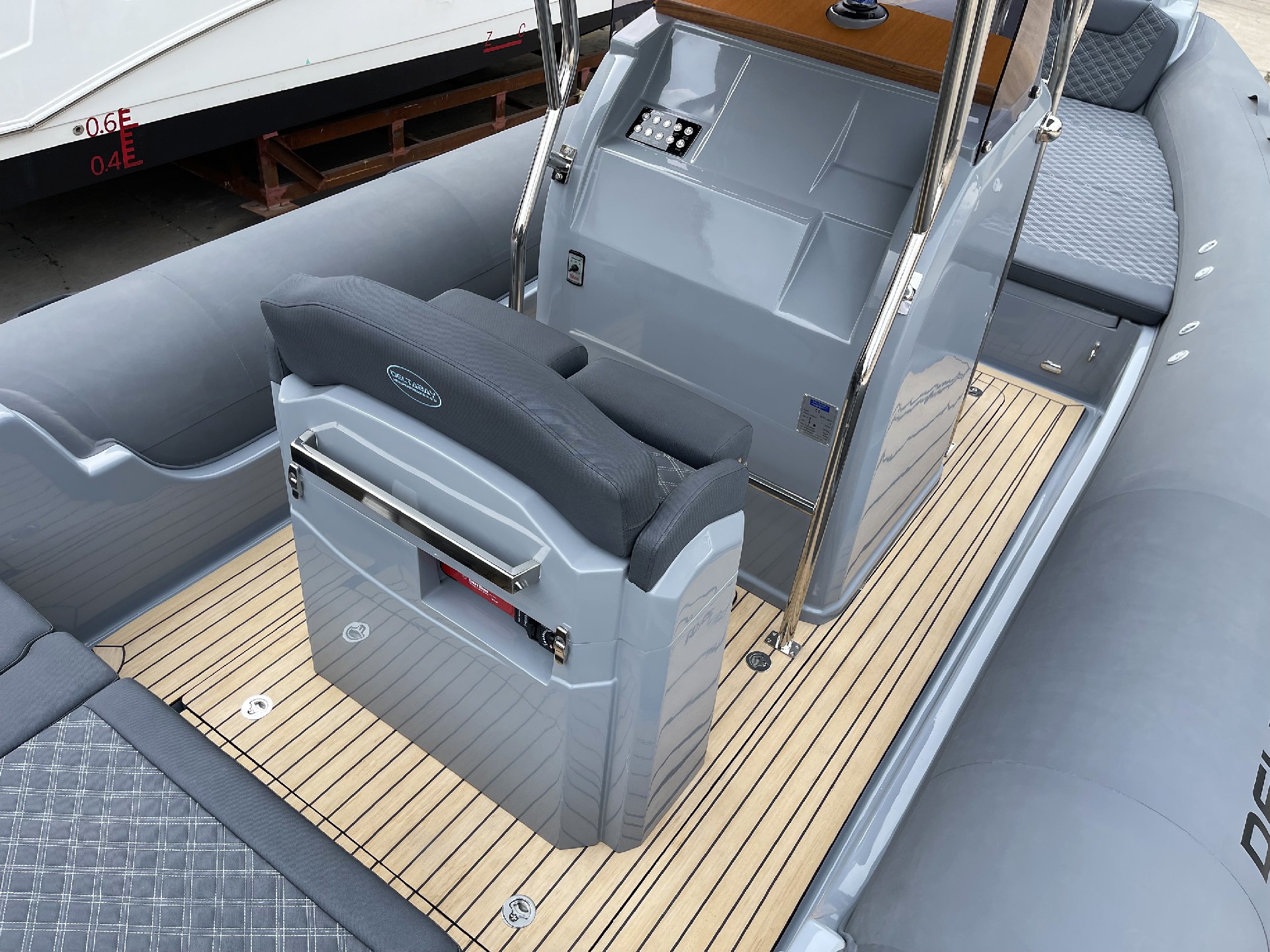

* Molded helm seat with storage under；

INFLATABLE TUBE

* Heavy-duty PVC fabric inflatable tube;

* 6 independent inflatable sections in tube;

* 6 plastic non-corrosive 2-stage inflation valves;

* 6 Safety relief valves;

* Double heavy-duty impact-resistant rubber rubbing strake;

* Looped grab handles on each side of tube;

* Large molded rubber easy-grip handles on tubes;

* Molded fiberglass step on each side of tube

* Repair box
